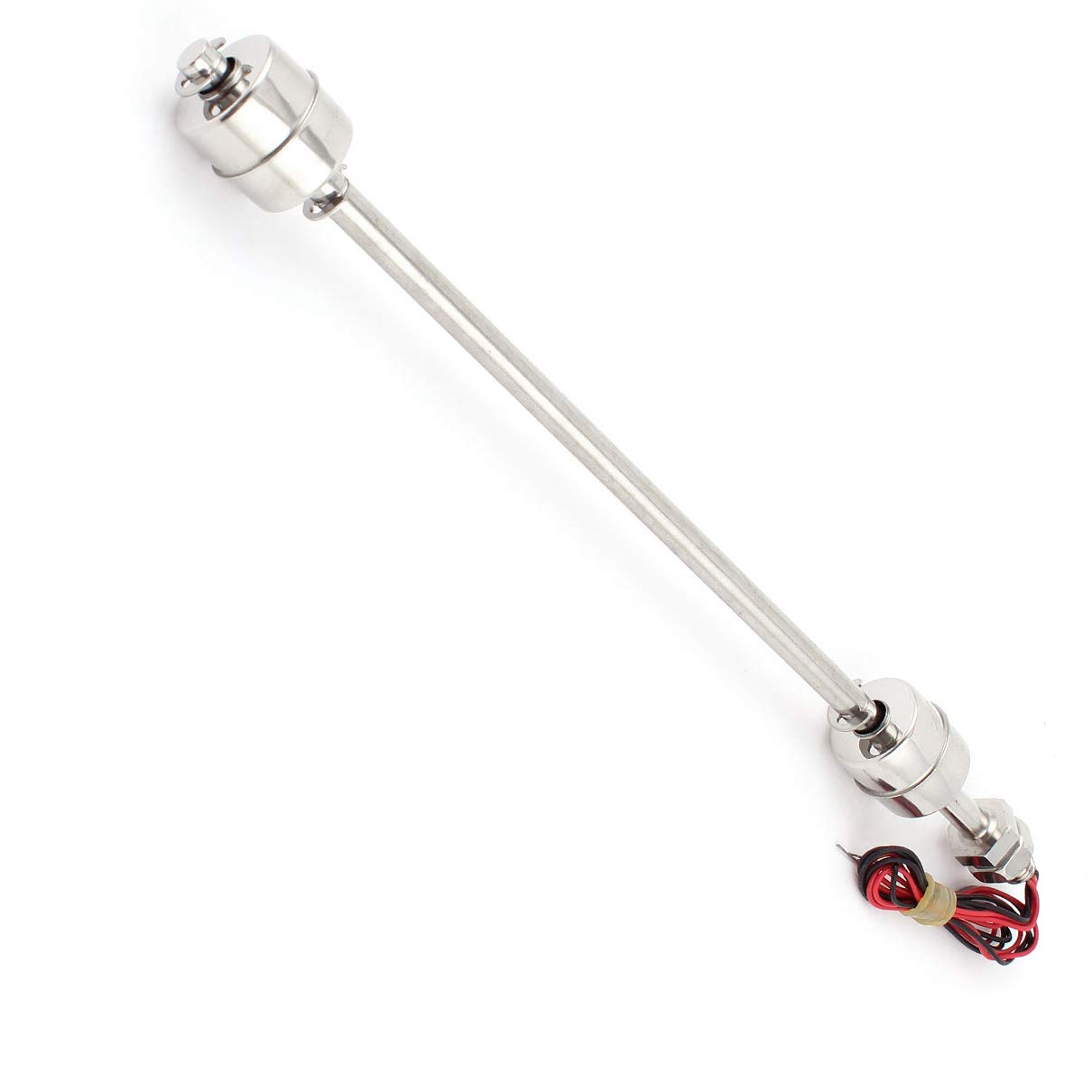

This is a Mini stainless steel float swith,contains no .This float switch is a device used to sense the level of liquid within a tank,the switch may activate a pump,an indicator,an ,or other device.This Mini float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment.Light weight and simple working principle,high reliability.The versatility of this vertically monted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water rise or fall.The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and .
Float Ball Size 28 x 28mm/1.1" x 1.1"(L*D); Wire Length 35mm/1.4"; Total Length 318mm/12.5"; Design Double Ball
Put In Water Length 300mm/12"; Product Name Float Switch; Country of Manufacture CHINA; Material Stainless Steel
Net Weight 99g; Package Content 1 x Water Level Sensor; Brand ; Model ES30010-2
Max. Breakdown Voltage DC 220V; Max. Switch Current 0.5A; Max. Contact Rating 10W; Max. Switch Voltage DC 100V
Max. Carry Current 1.0A; Max. Contact Resistance 100m Ohm; Temperature Rating -30C- +125C; Thread Dia 10mm/0.4"
